ADVANTCRAFT ®   3948 Series Scaffold
Model 3948 SCAFFOLD RENTAL - OPTION 2
RETURN TO TOP OF PAGE

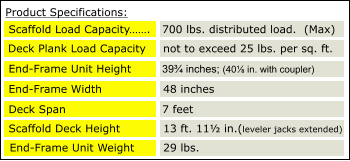

39¾ inches; (40⅛ in. with coupler) Deck Plank Load Capacity not to exceed 25 lbs. per sq. ft. End-Frame Unit Height End-Frame Width 48 inches Deck Span 700 lbs. distributed load. (MAX) 700 lbs. distributed load. (MAX) 7 feet Scaffold Load Capacity……. 700 lbs. distributed load. (Max) Scaffold Deck Height 13 ft. 11½ in.(leveler jacks extended) End-Frame Unit Weight 29 lbs. Product Specifications:
Copyright © 2024 Advantcraft, Inc. All rights reserved. Advantcraft ® is a registered trademark of Advantcraft, Inc.

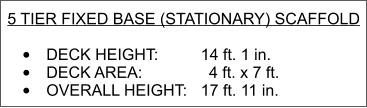

5 TIER FIXED BASE (STATIONARY) SCAFFOLD • DECK HEIGHT: 14 ft. 1 in. • DECK AREA: 4 ft. x 7 ft. • OVERALL HEIGHT: 17 ft. 11 in.
Model 3948 SCAFFOLD RENTAL - OPTION 2
5 TIER FIXED BASE (STATIONARY) SCAFFOLD • DECK HEIGHT: 14 ft. 1 in. • DECK AREA: 4 ft. x 7 ft. • OVERALL HEIGHT: 17 ft. 11 in. 39¾ inches; (40⅛ in. with coupler) Deck Plank Load Capacity not to exceed 25 lbs. per sq. ft. End-Frame Unit Height End-Frame Width 48 inches Deck Span 700 lbs. distributed load. (MAX) 700 lbs. distributed load. (MAX) 7 feet Scaffold Load Capacity……. 700 lbs. distributed load. (Max) Scaffold Deck Height 13 ft. 11½ in.(leveler jacks extended) End-Frame Unit Weight 29 lbs. Product Specifications:
RETURN TO TOP OF PAGE
Copyright © 2024 Advantcraft, Inc. All rights reserved. Advantcraft ® is a registered trademark of Advantcraft, Inc.
