ADVANTCRAFT ®   3948 Series Scaffold

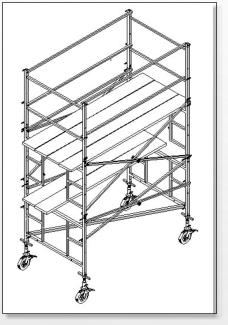

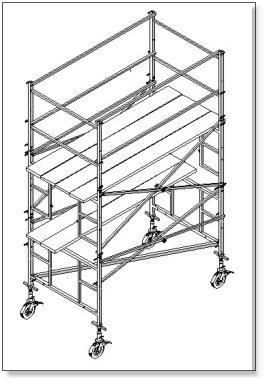

The building blocks of the Advantcraft ®  Model 3948M Mobile Scaffold system are four (4) basic scaffold component sets.  Each set can be purchased separately or as part of an entire scaffold package.  Units stack vertically raising the work platform height.  The maximum deck height for a standard 3 tier Advantcraft ®   Model 3948M Mobile Scaffold is 7 feet 6¾ inches (as shown); to a maximum 14 feet 3 inches with optional outriggers and end-frame sets (total 5 unit stack).

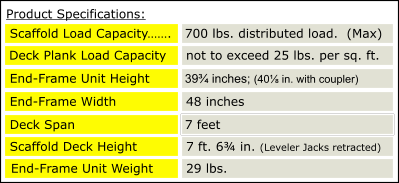

39¾ inches; (40⅛ in. with coupler)  Deck Plank Load Capacity not to exceed 25 lbs. per sq. ft. End-Frame Unit Height End-Frame Width 48 inches Deck Span 700 lbs. distributed load. (MAX) 700 lbs. distributed load. (MAX) 7 feet Scaffold Load Capacity……. 700 lbs. distributed load.  (Max) Scaffold Deck Height 7 ft. 6¾ in. (Leveler Jacks retracted) End-Frame Unit Weight 29 lbs. Product Specifications: Copyright  © 2017 Advantcraft, Inc.  All rights reserved. Advantcraft ®  is a registered trademark of Advantcraft, Inc.
The building blocks of the Advantcraft ®  Model 3948M Mobile Scaffold system are four (4) basic scaffold component sets.  Each set can be purchased separately or as part of an entire scaffold package.  Units stack vertically raising the work platform height.  The maximum deck height for a standard 3 tier Advantcraft ®   Model 3948M Mobile Scaffold is 7 feet 6¾ inches (as shown); to a maximum 14 feet 3 inches with optional outriggers and end-frame sets (total 5 unit stack).
39¾ inches; (40⅛ in. with coupler)  Deck Plank Load Capacity not to exceed 25 lbs. per sq. ft. End-Frame Unit Height End-Frame Width 48 inches Deck Span 700 lbs. distributed load. (MAX) 700 lbs. distributed load. (MAX) 7 feet Scaffold Load Capacity……. 700 lbs. distributed load.  (Max) Scaffold Deck Height 7 ft. 6¾ in. (Leveler Jacks retracted) End-Frame Unit Weight 29 lbs. Product Specifications: Copyright  © 2017 Advantcraft, Inc.  All rights reserved. Advantcraft ®  is a registered trademark of Advantcraft, Inc.
ADVANTCRAFT ®   Model 3948M Mobile Scaffold
